Elevator Lift Instructions


Please click on picture to enlarge


Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!


Before lifting boat, the boat must be centered on lift!
You must find out your pick up points and lift the boat by your designated Pick up Points!

Caution: Boatlifts Are Not Made For Lifting Humans!!

Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.

Note: For Track Spread Please See Specifications.

Note: From Track Mount to Soil Distance- No More Than 13'! Over 13' Requires Kicker Brace.

Note: Specialty Tool Needed: Home Depot Product: Johnson Contractor Magnetic Angle Locator Model# 700 Sku# 376701

Track Spread & Specifications

Track Spread & Specifications 13 A

Track Spread & Specifications 13 B

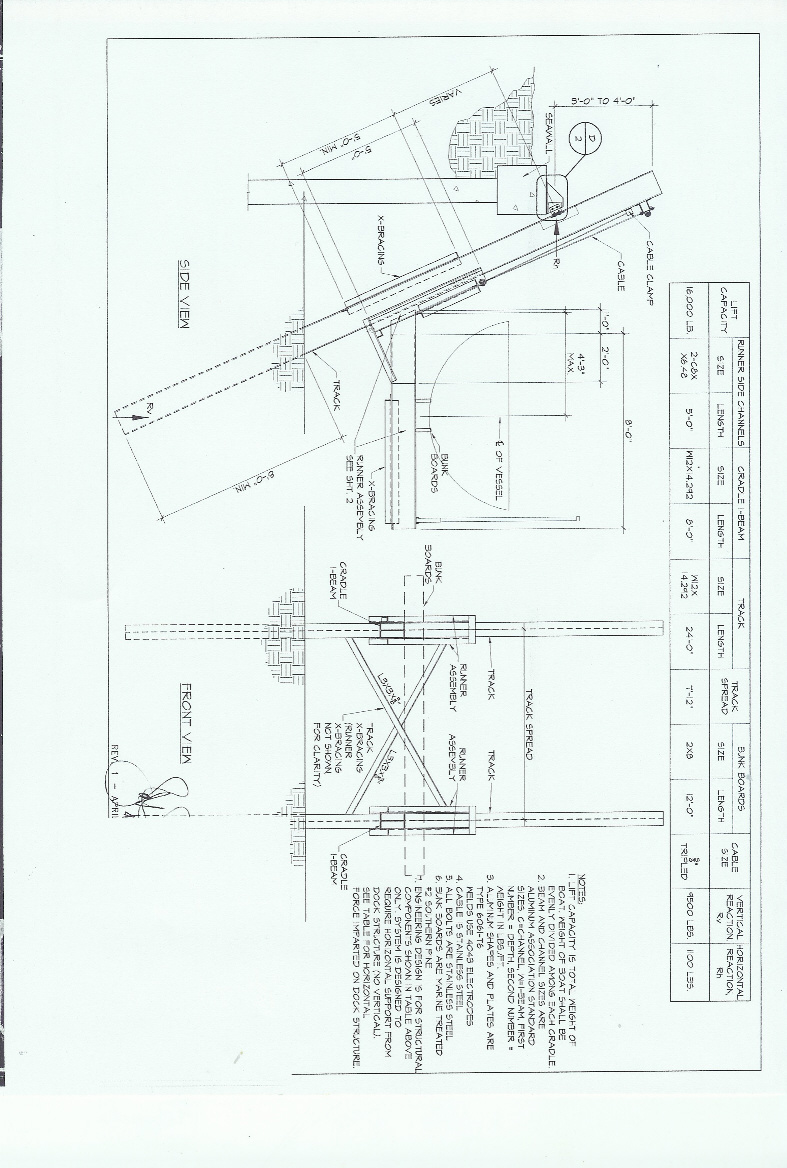

Track Spread & Specifications 16 A

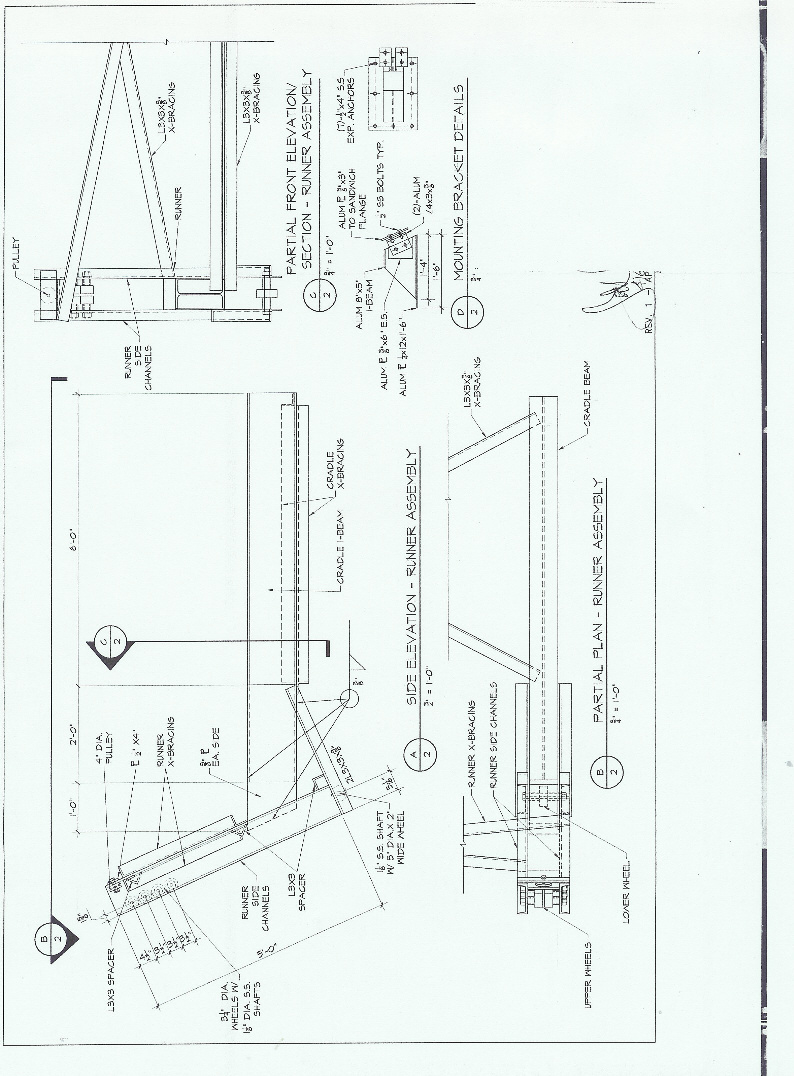

Track Spread & Specifications 16 B

Elevator Packing List (works format)

Elevator Packing List (rich text format)

Elevator parts description pics

Elevator Instructions Works format

Elevator Instructions pdf file


Wire Diagram

Color photo of Deadman Bracket

Picture is worth a 1,000 Words!!

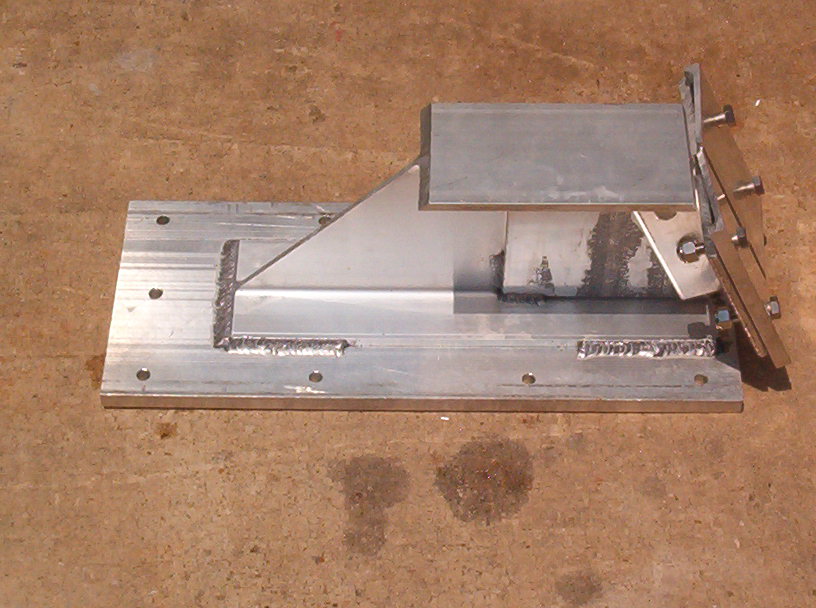

This is the
seawall mount
bracket before
installation.

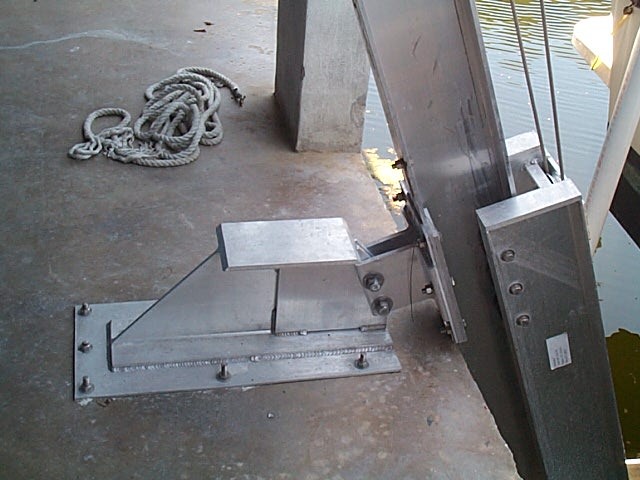

This is the
seawall mount
bracket installed.

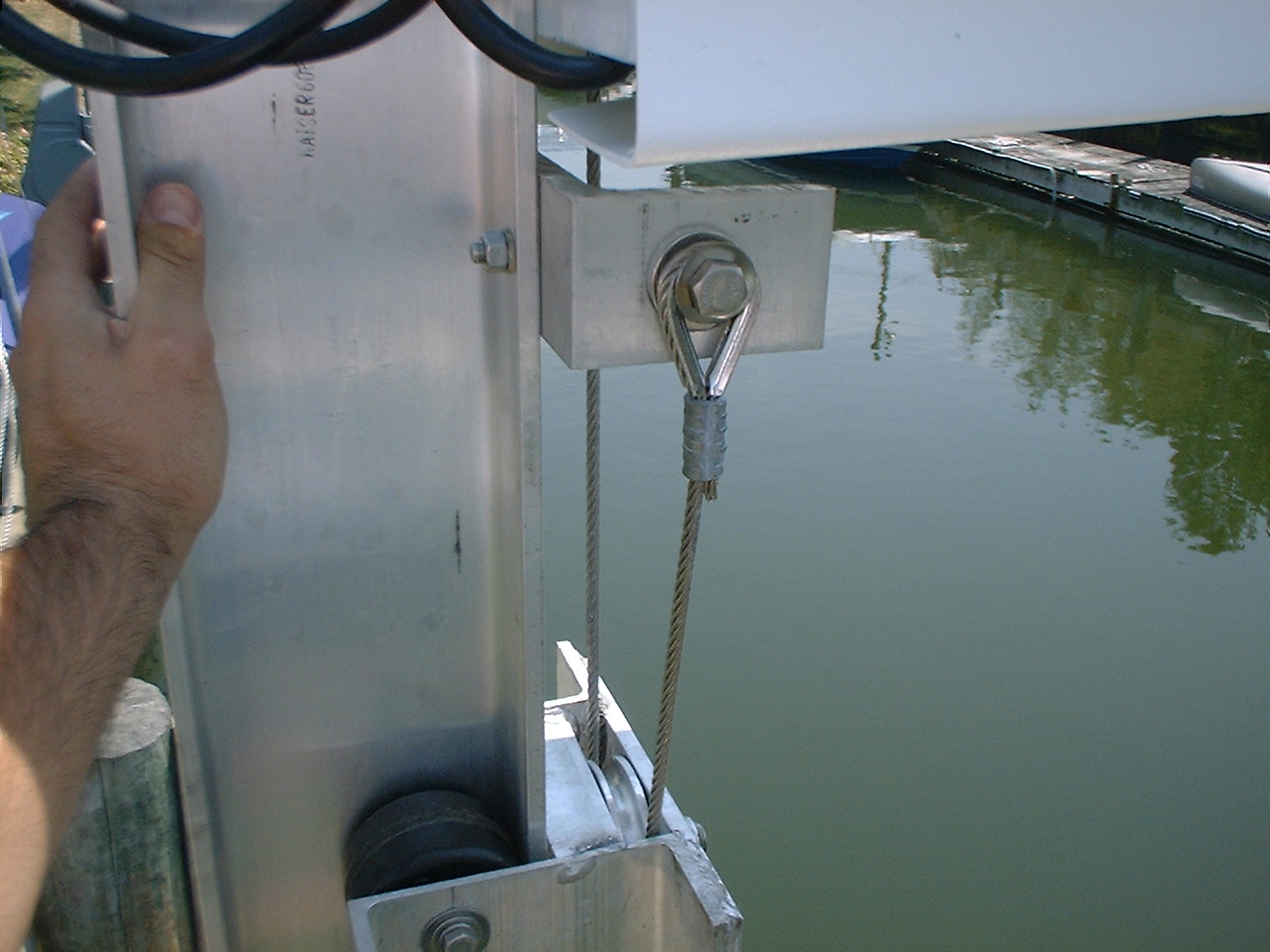

This is the
bracket the
cable deadmans
into on a
double pull.

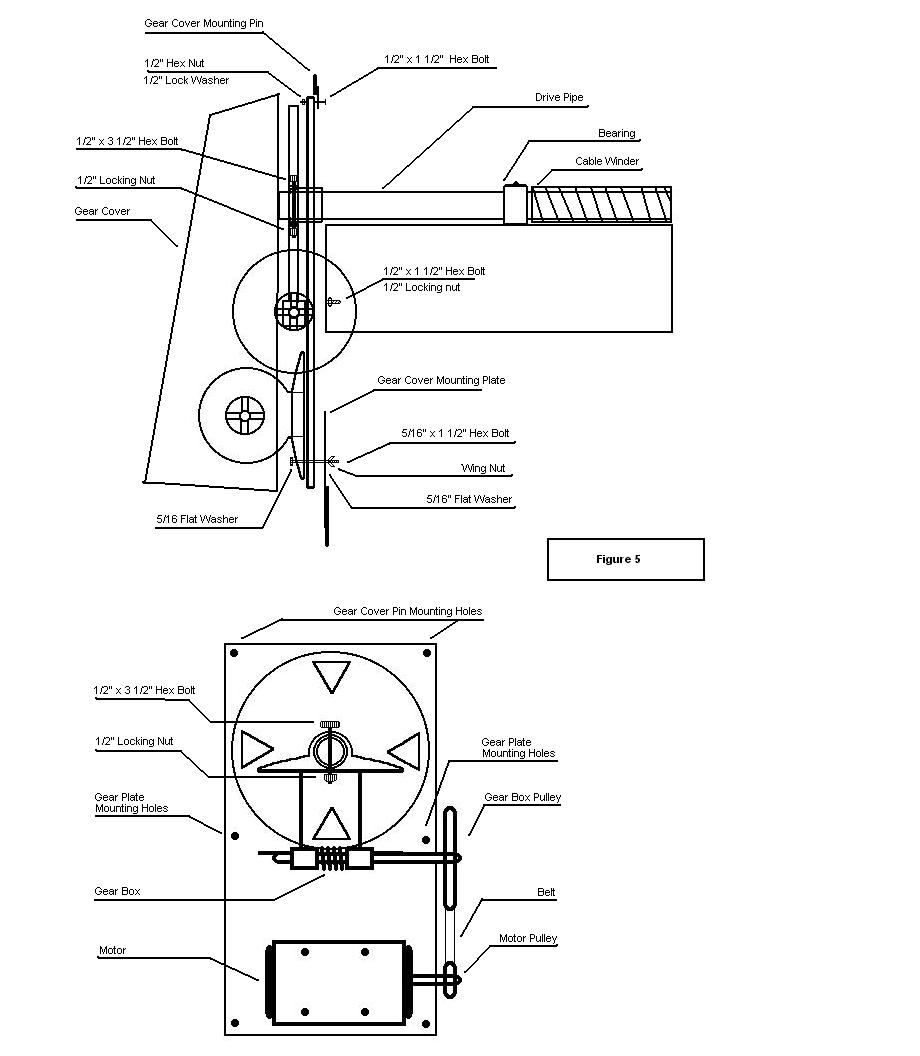

This is a
Diagram of
The Hoist Unit

This is how the
cable goes through the
deadman bracket

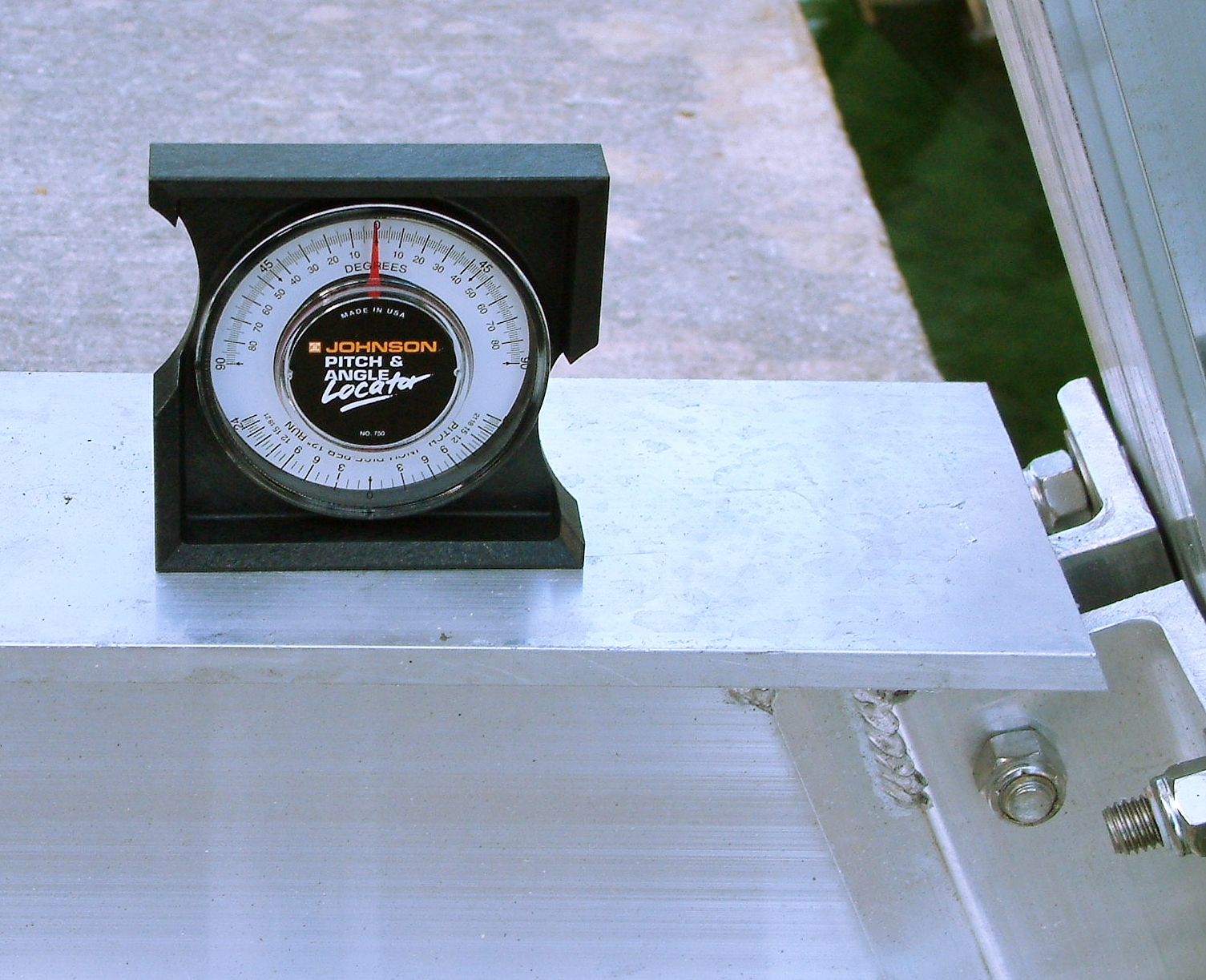

Please make sure
your seawall mount
bracket is level.

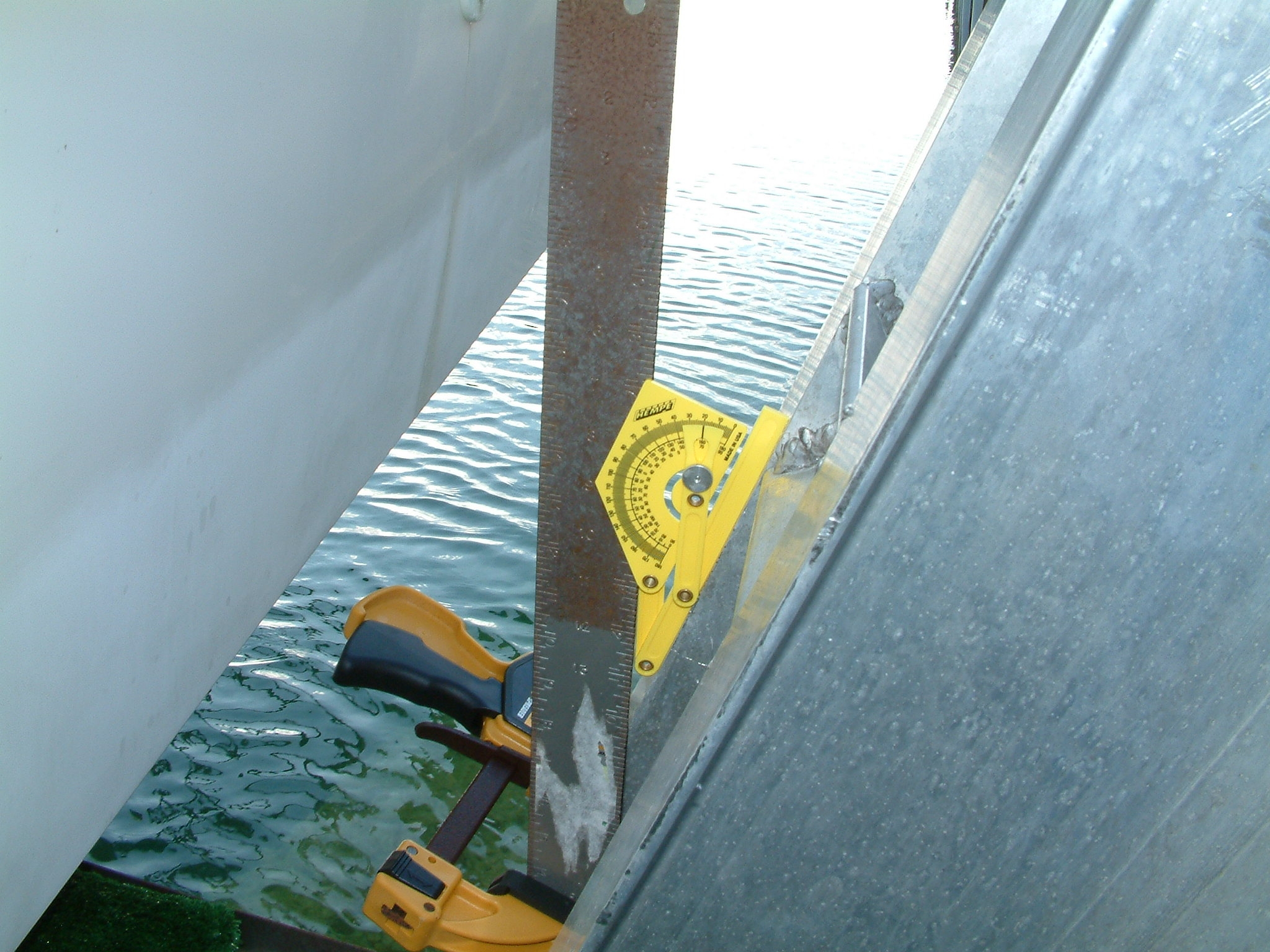

Please make sure
you set your
lift at the correct
Degree.

I-Beams must be secured onto seawall or piling with no movement.

Track Note: Lift size is determined by water depth & soil type not only the boats weight.

Warning: Any modifications to lift voids Warranty!

Minimum Size copper wire For Full Power

0-50 FT0-50 FT50-100 FT50-100 FT100-200 FT100-200 FT200-300 FT200-300 FT300-400 FT300-400 FT
Motor HP115V230V115V230V115V230V115V230V115V230V
1/2 HP12---8---6---4---4---
3/4 HP121481061041036
1 HP10128104103826
1-1/2 HP8126838161/04

Maximum Voltage drop 4% for Full Power


For Tech Support e-mail Tech Support
Please keep in mind to handle your questions we prefer them to be in e-mail so that all of our staff has access and can help you.

To quicken the process if you can take pictures of the part or area you have questions on and send them to us. Having the pictures helps us clarify any questions due to the high volume of lifts we maufacture for different companies.
