Boatlift Instructions
Please click on link to enlarge and print
Please read all instructions before attempting to install
your lift. Failure to due so could result in serious injury or death.
Parts List - Word Format
Parts List - Rich Text Format
Parts List - Works Format
4 Piling Specs 3,000# - 16,000#
4 Piling Specs blank for custom jobs

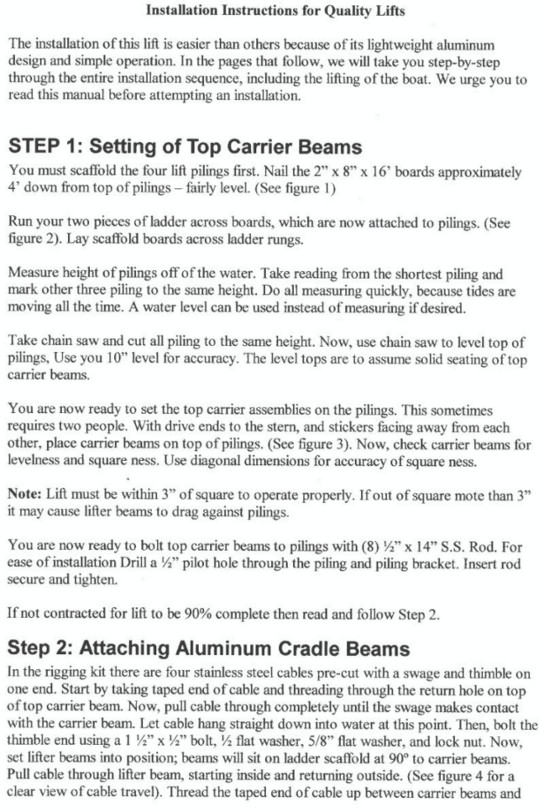

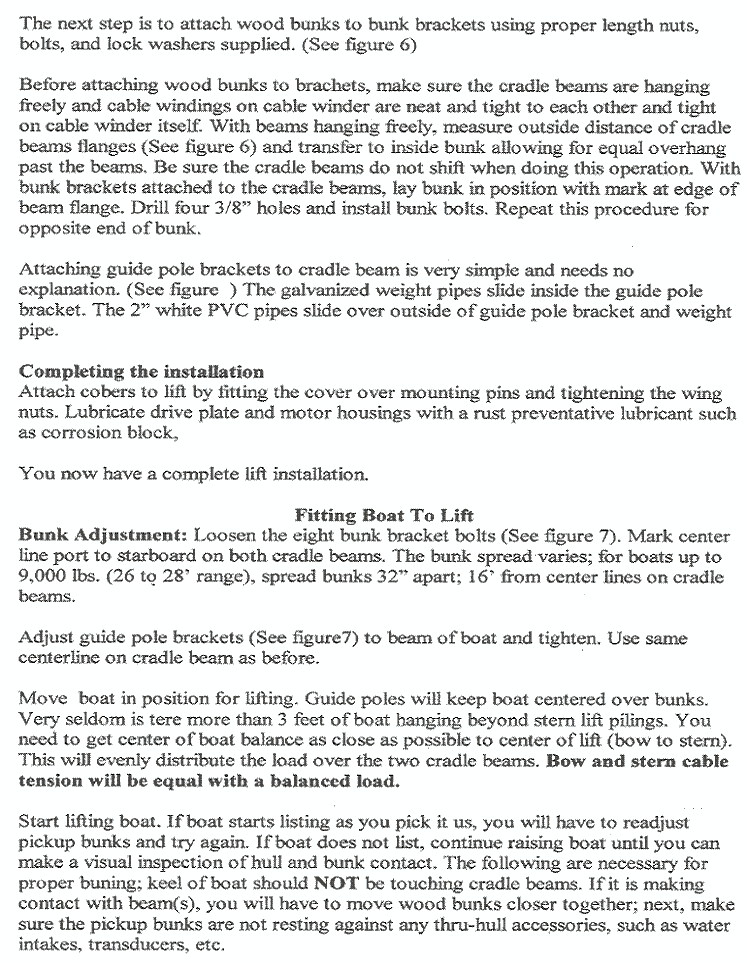

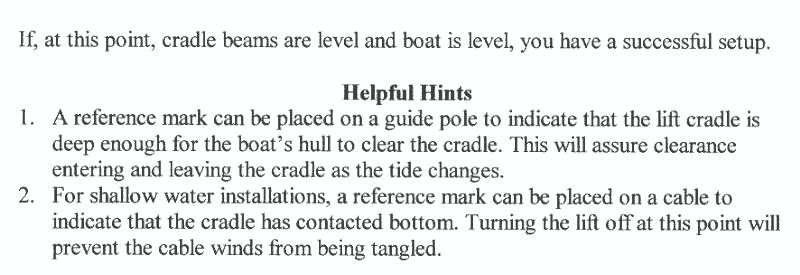

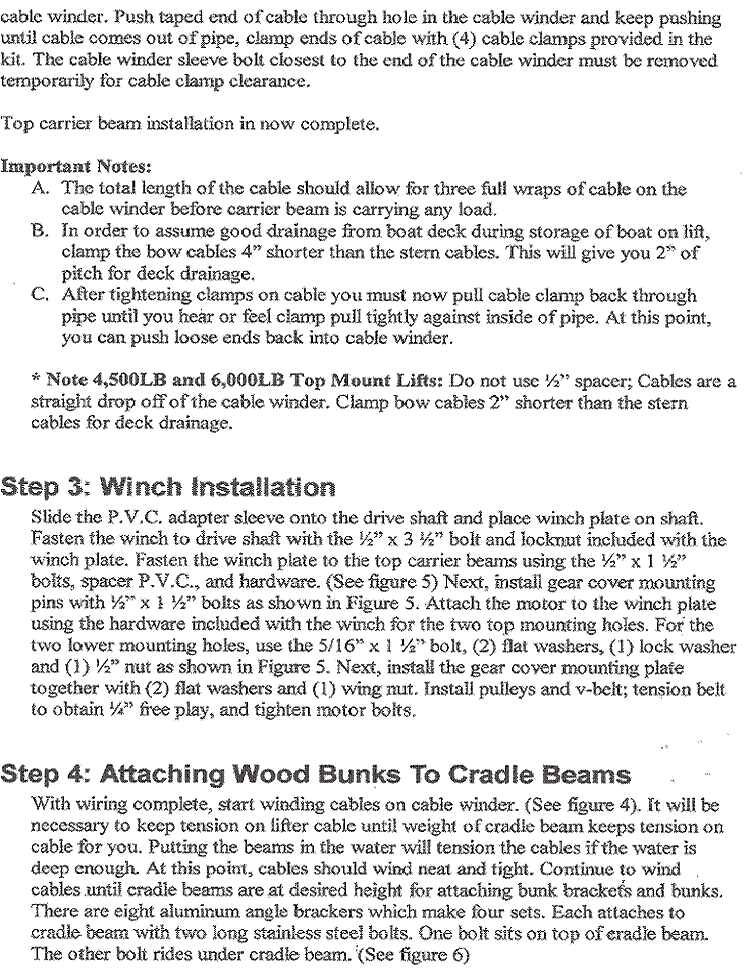

 | Step 1 & 2 |  | Step 3 & 4 |  | Step 4 Cont. |  | Helpful Hints |

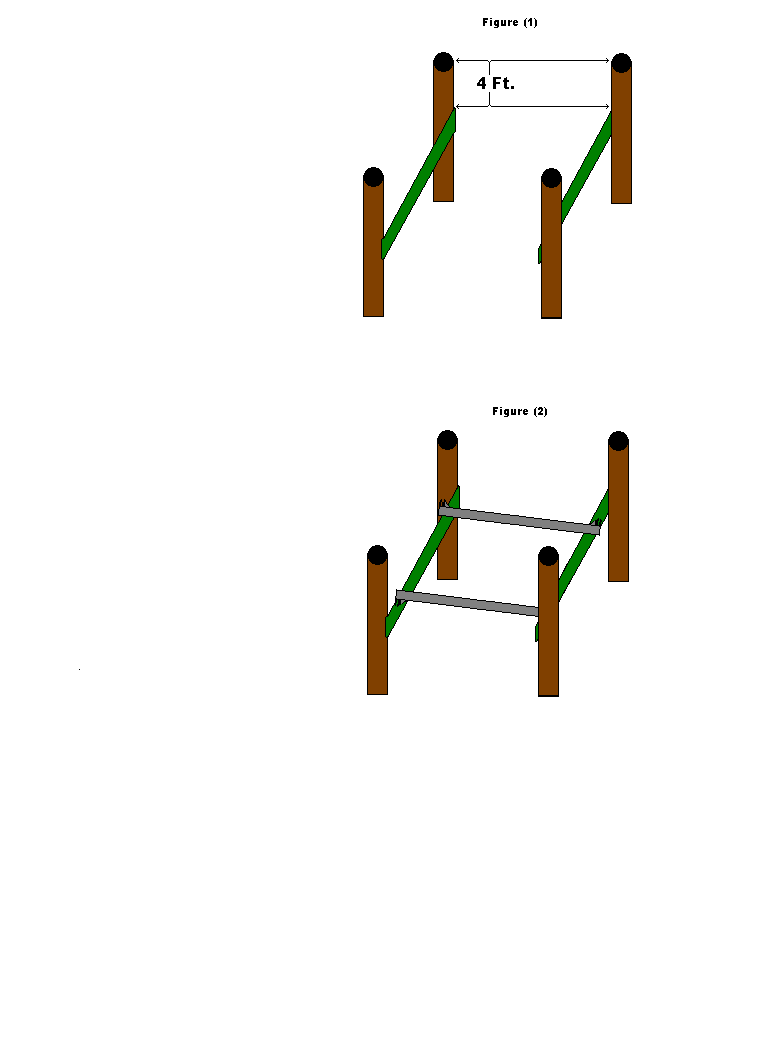

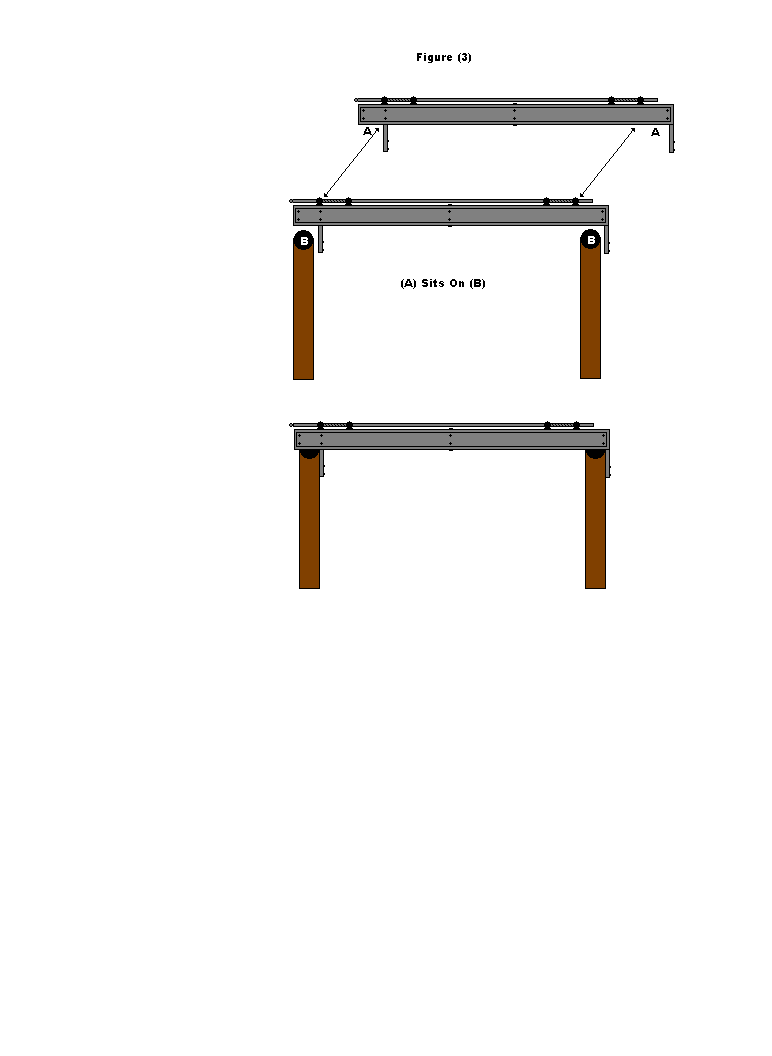

 | Fig 1 & 2 |  | Fig. 3 |  |
Fig. 4 |  | Fig. 5 |
 | Fig. 6 |  | Fig. 7 |  | Wire Diagram |
 | 2003
Guide Post |  | 2003
Deadman
Bracket |
New Cable installation diagram
Cover installation diagram
For Gem Remote Wiring Diagrams click here. Use the one that is for your specific motor.
Extended Bunk Diagram Frontview
Extended Bunk Diagram Sideview
30,000 installation instructions
30,000 installation instructions page 2
For 30,000# Lifts with custom triple pull please reference the diagrams below.
1st Triple Pull Diagram
2nd Triple Pull Diagram
Color photo of Guide Post
Color photo of Deadman Bracket
Most Commonly Asked Questions
1. To Switch Motor Direction Change T-8 & T-9 in the Switch.
2. Your Gem Remote Wiring Diagrams are located in side the remote.
3. Stickers on the Top Unit Should Face The Outside.(Away From Each Other)
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Warning: Any modification to lift voids Warranty!
Minimum Size copper wire For Full Power
| 0-50 FT | 0-50 FT | 50-100 FT | 50-100 FT | 100-200 FT | 100-200 FT | 200-300 FT | 200-300 FT | 300-400 FT | 300-400 FT |
| Motor HP | 115V | 230V | 115V | 230V | 115V | 230V | 115V | 230V | 115V | 230V |
| 1/2 HP | 12 | --- | 8 | --- | 6 | --- | 4 | --- | 4 | --- |
| 3/4 HP | 12 | 14 | 8 | 10 | 6 | 10 | 4 | 10 | 3 | 6 |
| 1 HP | 10 | 12 | 8 | 10 | 4 | 10 | 3 | 8 | 2 | 6 |
| 1-1/2 HP | 8 | 12 | 6 | 8 | 3 | 8 | 1 | 6 | 1/0 | 4 |
Maximum Voltage drop 4% for Full Power
For Tech Support e-mail Tech Support
Please keep in mind to handle your questions we prefer them to be in e-mail so that all of our staff has access and can help you.
To quicken the process if you can take pictures of the part or area you have questions on and send them to us. Having the pictures helps us clarify any questions due to the high volume of lifts we maufacture for different companies.
